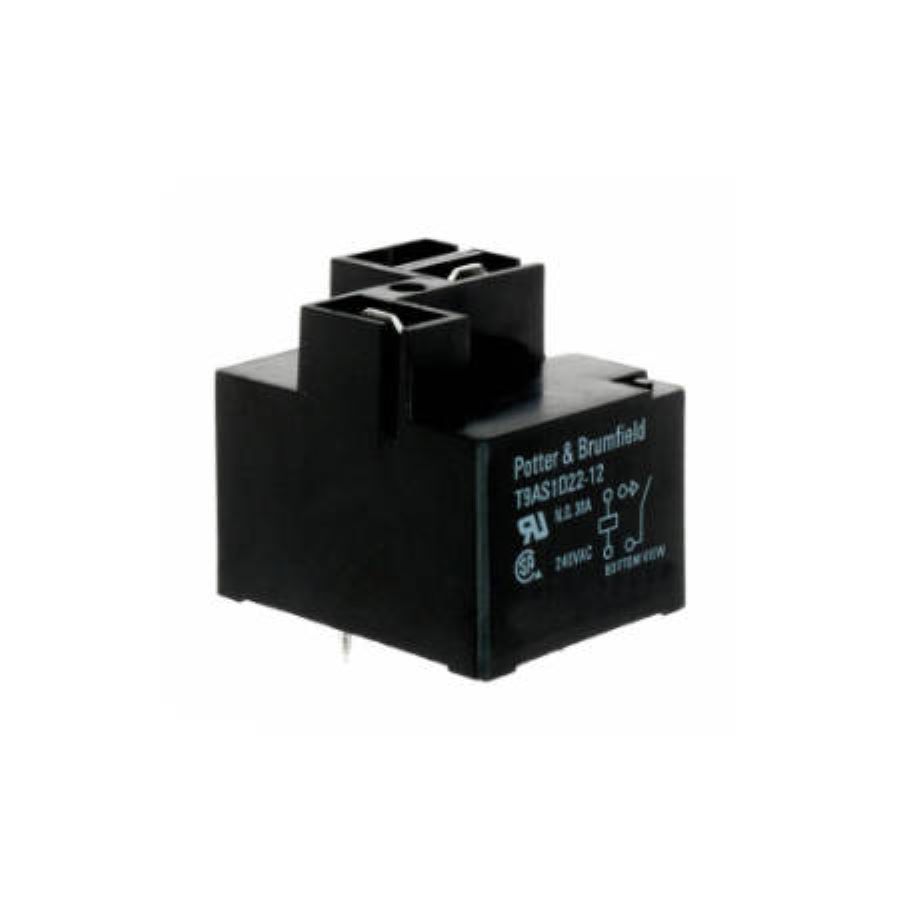

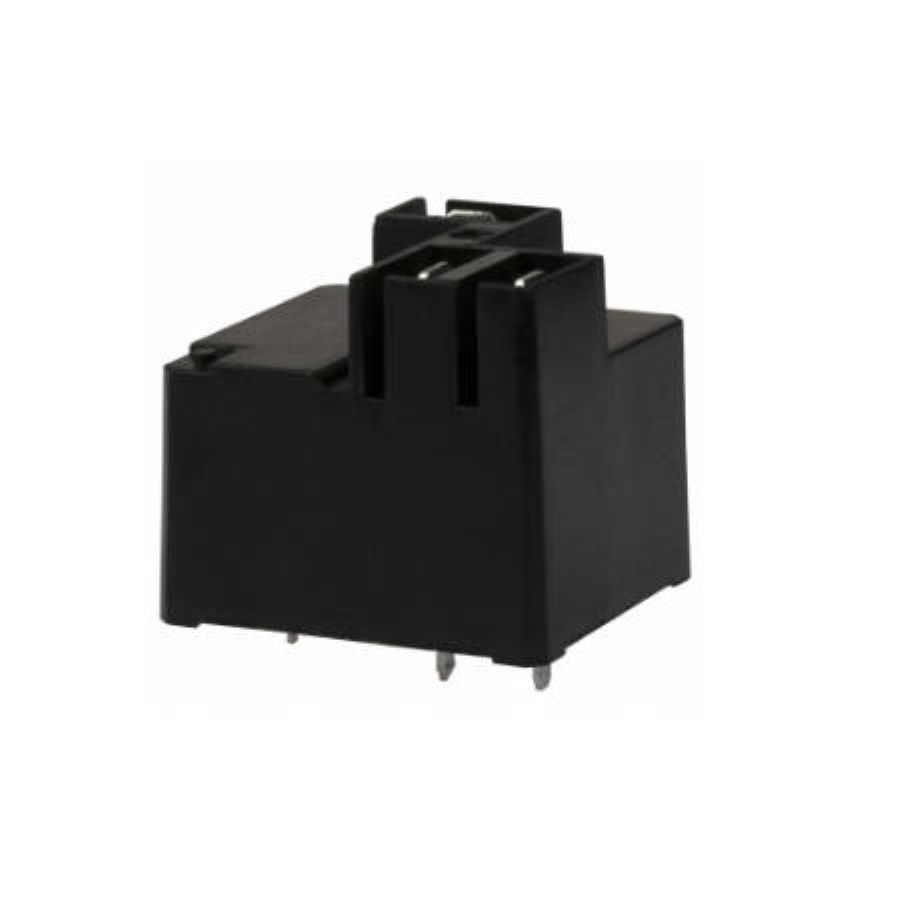

T9AS5D22-12
Manufacturer:
TE Connectivity
Mfr.Part #:
T9AS5D22-12
Datasheet:
Description:
Signal Relays PCB Mount 83 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Length | 32.51 mm |
| Width | 27 mm |
| Termination | Quick Connect |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 277 V |
| Number of Pins | 5 |
| Height | 27.94 mm |
| Packaging | Bulk |
| Depth | 27.43 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Cadmium Oxide (AgCdO) |
| Current Rating | 20 A |
| Max Voltage Rating (DC) | 28 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 83 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 144 Ω |
| Relay Type | General Purpose |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Contact Current Rating | 20 A |
| switching current | 20 A |
| power consumption | 1 W |
| Termination Style | PC Pin |
| Switching Voltage | 277 V |
| Coil Power | 1 W |
| Coil Voltage (AC) | 12 V |
| Schedule B | 8536410050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
| Contact Form | SPDT (1 Form C) |
Stock: 240
Distributors
pcbx
pcbxUnit Price$3.37954
Ext.Price$3.37954
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.37954 | $3.37954 |
| 10 | $3.09741 | $30.97410 |
| 25 | $2.93497 | $73.37425 |
